LiveCharts2：一个.NET美观、功能强大的.NET图表库

项目介绍

LiveCharts2是一个.NET（MIT License）、美观、简单、灵活、交互式且功能强大的.NET图表、地图和仪表库。

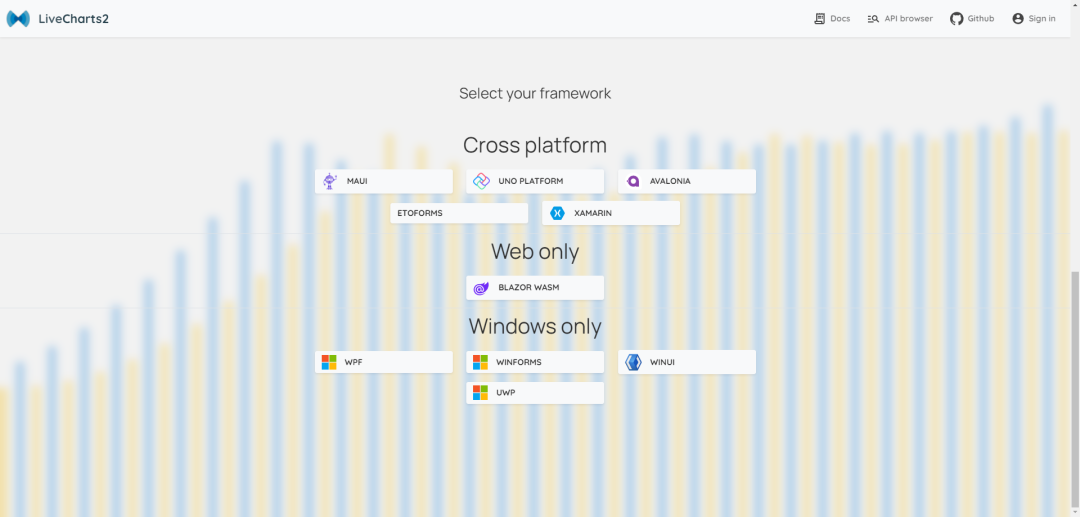

支持平台

现在几乎可以在任何地方运行如：Maui、Uno Platform、Blazor-wasm、WPF、WinForms、Xamarin、Avalonia、WinUI、UWP等。

WinForms中使用

安装Nuget包

Install-Package LiveChartsCore.SkiaSharpView.WinForms

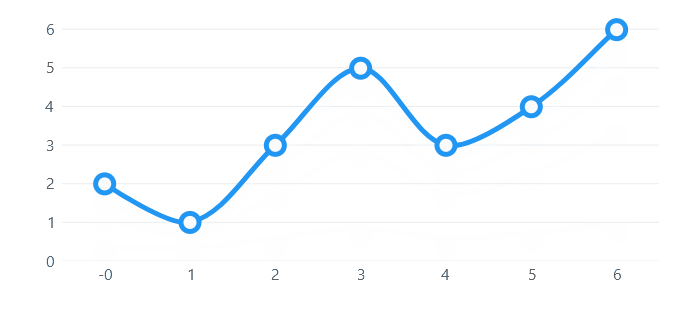

Basic Line

View Model:

using CommunityToolkit.Mvvm.ComponentModel;
using LiveChartsCore;
using LiveChartsCore.SkiaSharpView;
using LiveChartsCore.SkiaSharpView.Painting;
using LiveChartsCore.SkiaSharpView.VisualElements;
using SkiaSharp;

namespace ViewModelsSamples.Lines.Basic;

public partial class ViewModel : ObservableObject
{
    public ISeries[] Series { get; set; } =
    {
        new LineSeries<double>
        {
            Values = new double[] { 2, 1, 3, 5, 3, 4, 6 },
            Fill = null
        }
    };

    public LabelVisual Title { get; set; } =
        new LabelVisual
        {
            Text = "My chart title",
            TextSize = 25,
            Padding = new LiveChartsCore.Drawing.Padding(15),
            Paint = new SolidColorPaint(SKColors.DarkSlateGray)
        };
}

Code Behind:

using System.Windows.Forms;
using LiveChartsCore.SkiaSharpView.WinForms;
using ViewModelsSamples.Lines.Basic;

namespace WinFormsSample.Lines.Basic;

public partial class View : UserControl
{
    private readonly CartesianChart cartesianChart;

    public View()
    {
        InitializeComponent();
        Size = new System.Drawing.Size(50, 50);

        var viewModel = new ViewModel();

        cartesianChart = new CartesianChart
        {
            Series = viewModel.Series,
            Title = viewModel.Title,

            // out of livecharts properties...
            Location = new System.Drawing.Point(0, 0),
            Size = new System.Drawing.Size(50, 50),
            Anchor = AnchorStyles.Left | AnchorStyles.Right | AnchorStyles.Top | AnchorStyles.Bottom
        };

        Controls.Add(cartesianChart);
    }
}

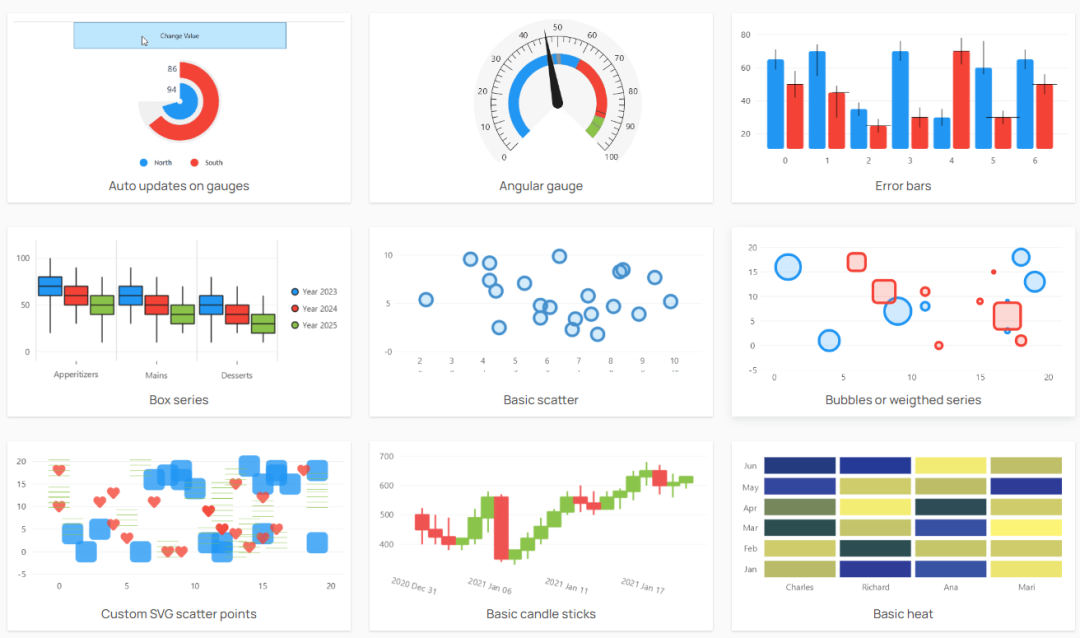

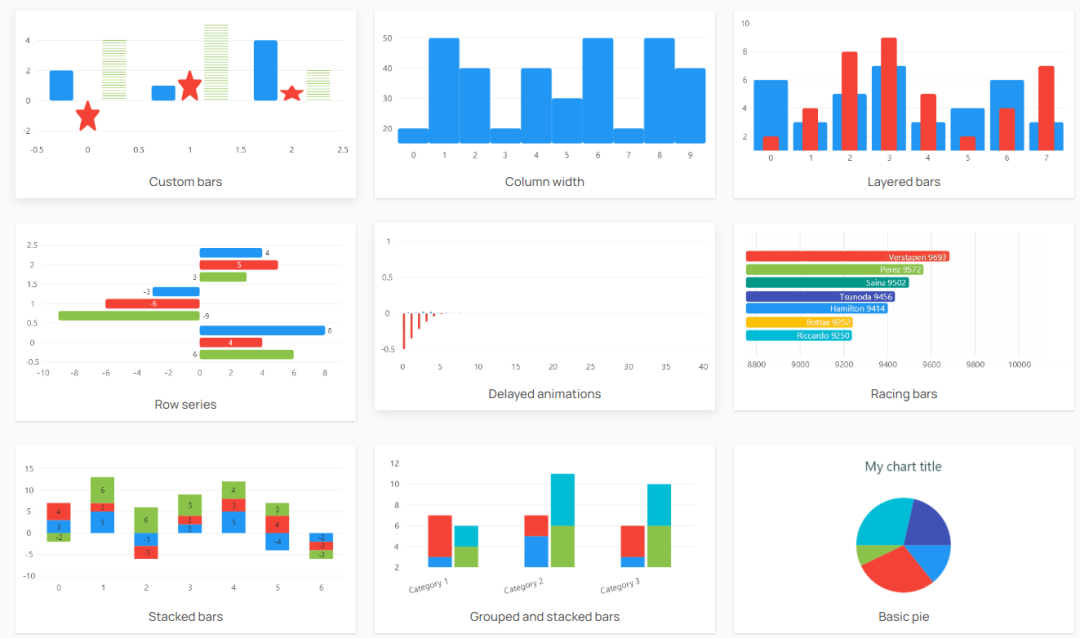

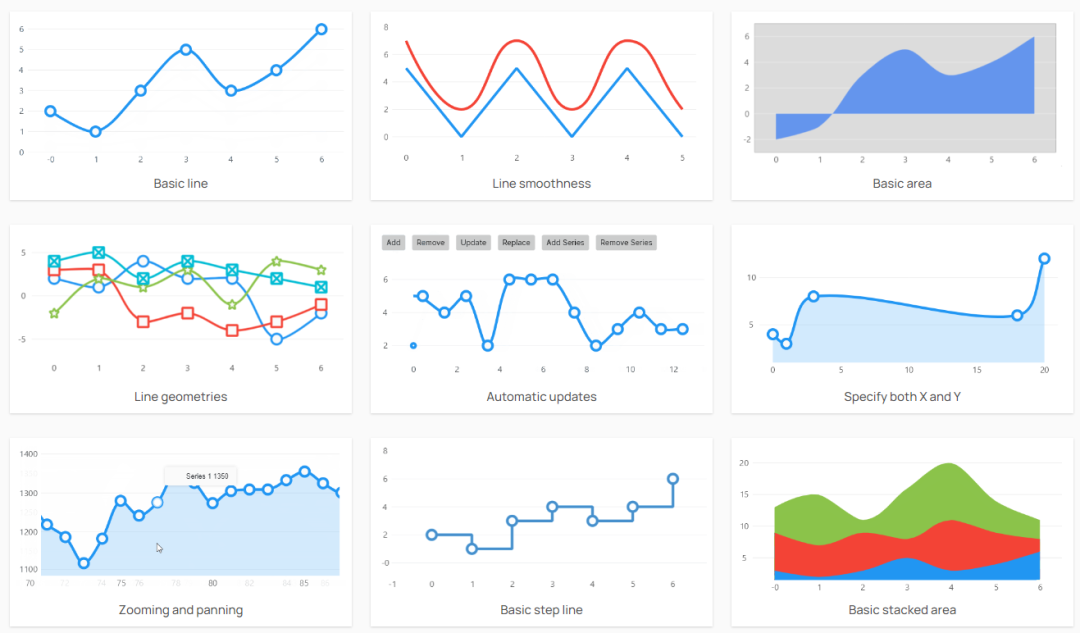

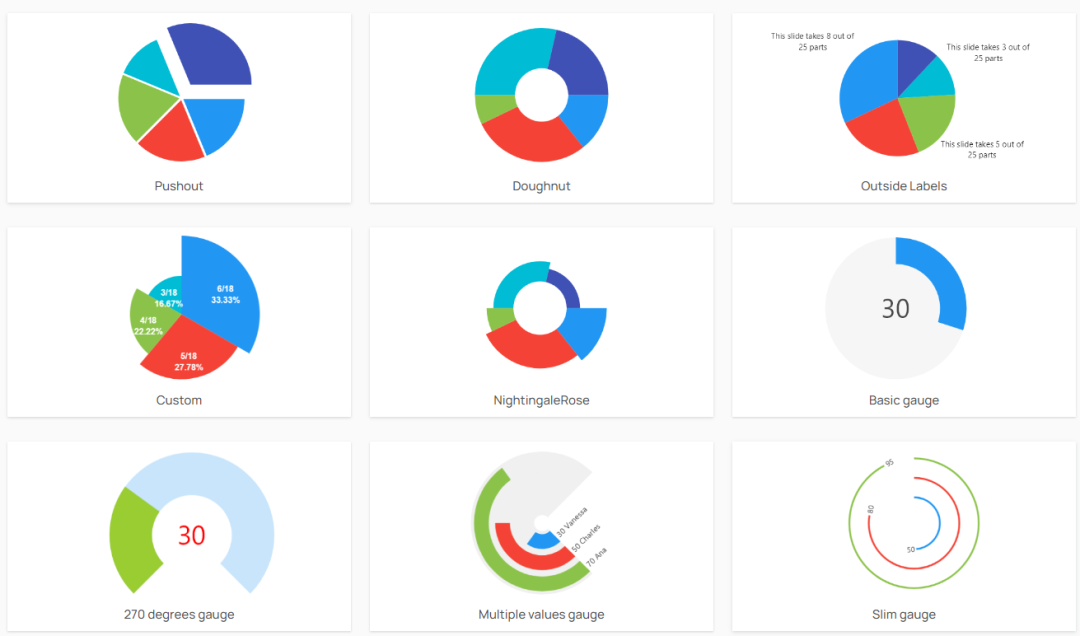

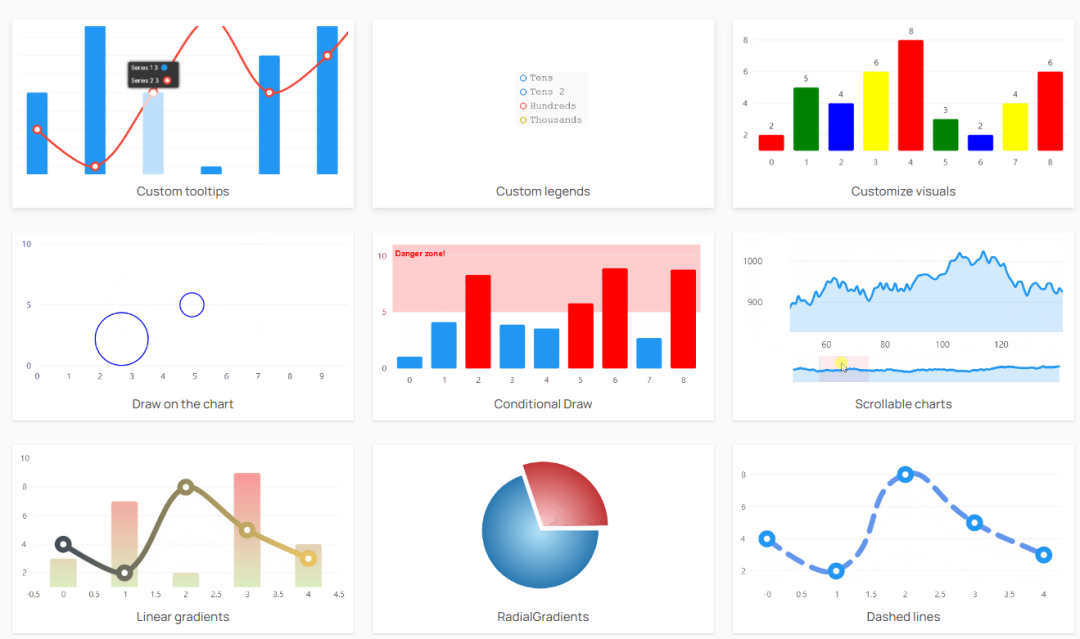

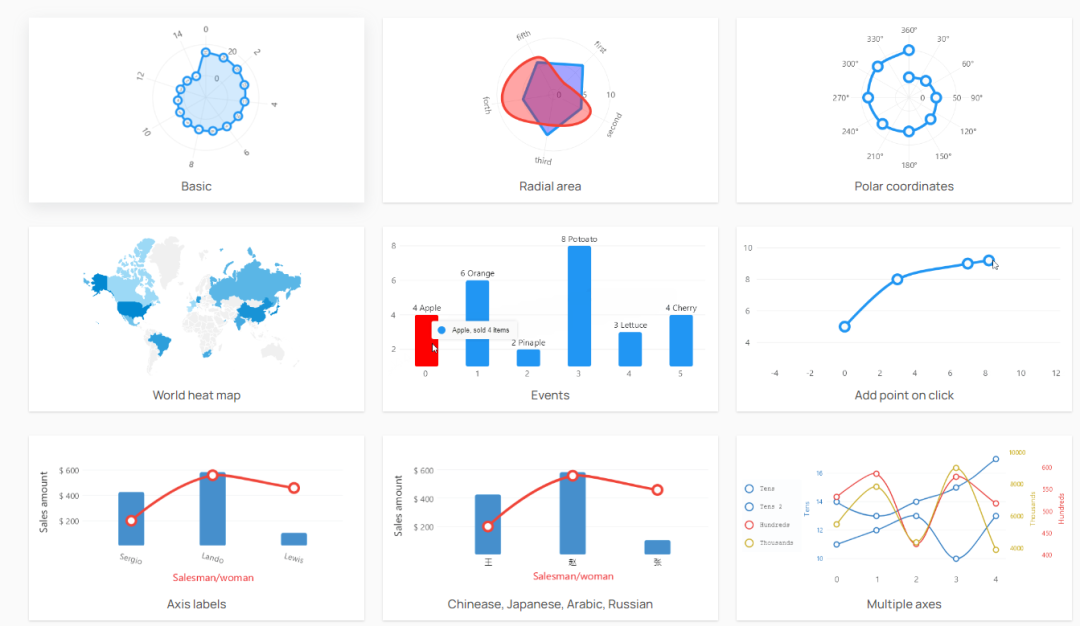

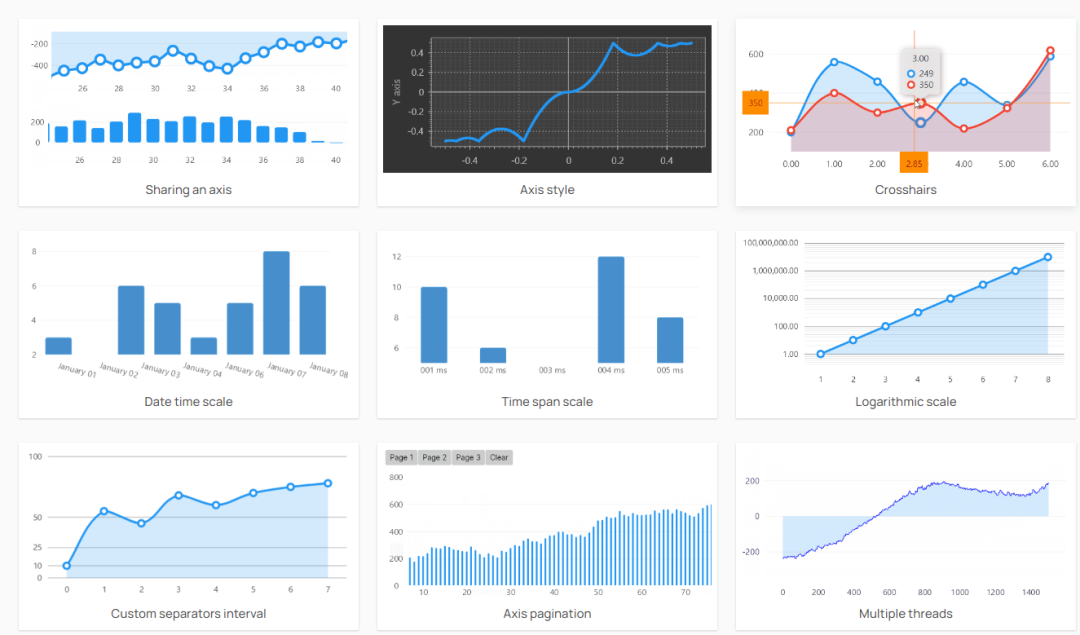

更多效果截图
